Modern networking places importance, on the effectiveness and consistency of transmitting data messages in both home and corporate settings to facilitate seamless device communication processes. Unraveling the Phenomenon of Ethernet Cable Crosstalk. 's role in network performance is vital, for maintaining operations and preventing disruptions.
Crosstalk in an Ethernet cable pertains to interference (EMl) between the wires inside the cable or between neighboring cables. This interference has the potential to distort the transmitted signals, resulting in errors, data transmission speed reductions, and network performance compromises.
The crosstalk happens due to Ethernet cables consisting of intertwined pairs of wires that transmit signals, when these wires are near each other and their electromagnetic fields interact with each other noise is generated as a result of this interaction between the wires and their electromagnetic fields, within the cable.

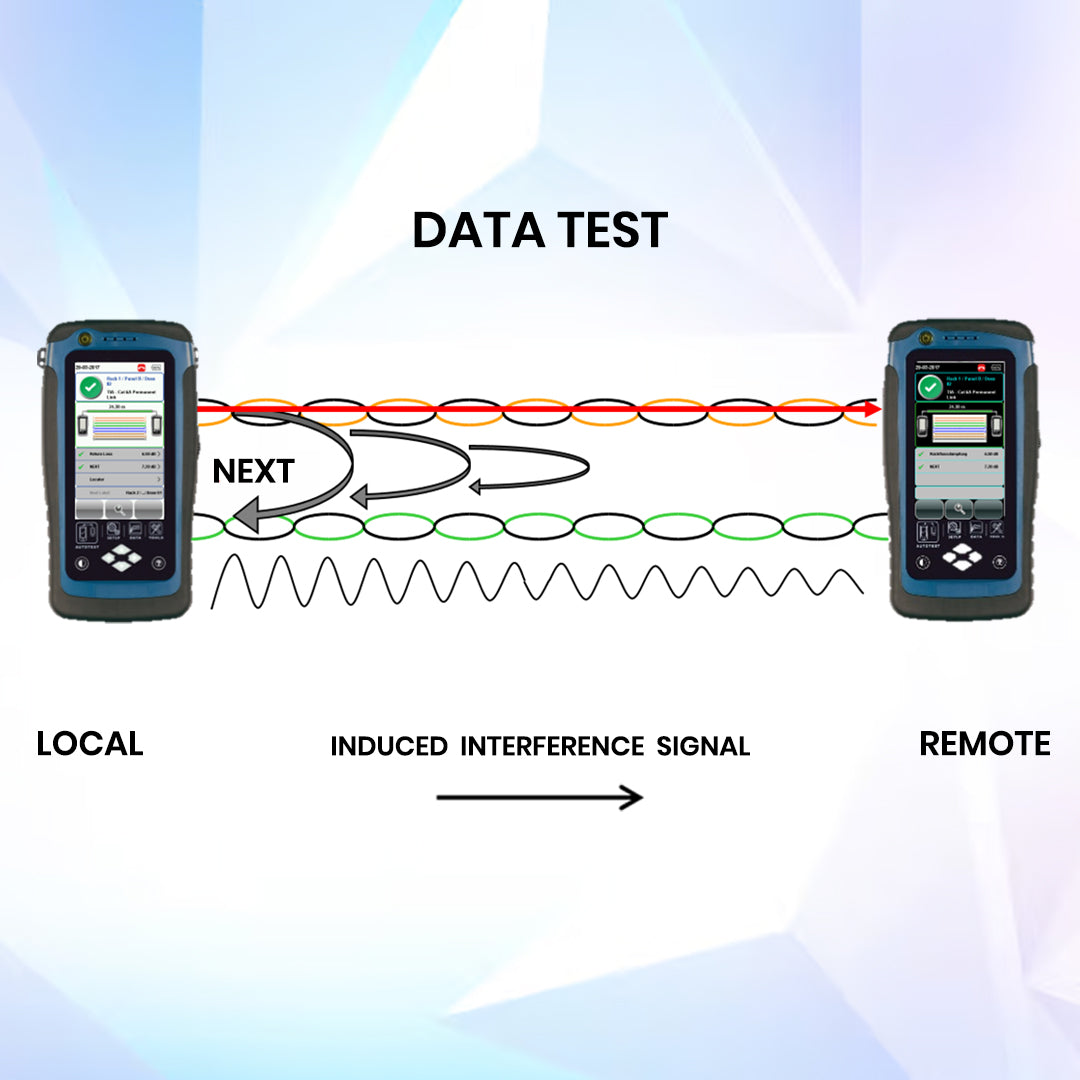

Near-end crosstalk (NEXT) occurs when the signal transmission is disrupted by interference from signals within the cable.
Far-end crosstalk (referred to as FEXT) occurs at the end of a cable and can disrupt signals, in another cable or wire.
Both kinds of issues can impact the strength of your network connection. Need to be resolved for the performance.
Ethernet cables experiencing crosstalk may result in problems such, as...
Recognizing these effects underscores the significance of preventing Ethernet Cable Crosstalk in setting up your network.
Some elements play a role in Ethernet cable crosstalk.
Flawed Cable Configuration
Ethernet cables that are poorly designed due, to not having twisting or proper shielding are at a risk of experiencing crosstalk issues. On the other hand quality cables, like Cat 6 or Cat 7 are specifically crafted to reduce interference.
Issue with the installation not done correctly
Bundling cables together or pulling them with much force can raise the chance of crosstalk occurring in the network system.
Placing Ethernet cables alongside power lines or other high voltage devices can worsen interference and signal overlap issues.
Going beyond the suggested cable length could weaken the signals. Make them more vulnerable to interference.
When you mix cables, like Cat 5E and Cat 6A together it can cause impedance mismatch. Raise the chances of Ethernet Cable Crosstalk occurring.
Top Tips for Preventing Ethernet Cable Crosstalk
For an efficient network setup try these tactics to reduce the interference, in Ethernet cables caused by crosstalk.
Invest in top-notch cables for performance
Consider investing in Ethernet cables that are specifically made to minimize crosstalk issues. Opting for higher-tier cables like Cat 6A or Cat 7, for shielding and better twisting to reduce interference. Make sure to buy your cables from trusted and well-known manufacturers.
Ensure that you keep your cables organized
Make sure to arrange your cables to prevent them from getting tangled or bundled up much. You can use cable organizers like Velcro straps or cable trays to keep your Ethernet cables separate and in line. Try not to bend the cables or apply too much tension to them.
Install shielded cables to improve the network performance and reduce interference risks
To minimize disruptions in settings to interference issues recommend employing shielded twisted pair (STO) cables. These cables are equipped with a shielding layer such as a foil or braided metal layer to counter electromagnetic interference and diminish Ethernet Cable Crosstalk.
Make sure there is space between the lines
Be sure to keep an amount of space between Ethernet cables and any other electrical wires or devices to prevent interference issues Avoid laying Ethernet cables next to power lines, for long stretches as it could lead to more signal disruption.
Remember to adhere to the correct procedures for shutting down systems
Make sure to connect Ethernet cables with good-quality connectors to avoid any issues, with impedance mismatches that could lead to crosstalk problems.
Stick to the suggested cable lengths recommended for performance
Most Ethernet standards set a limit of 100 meters ( 328 feet) for the cable length in most cases going beyond this threshold could result in signal degradation and increased vulnerability to crosstalk.
Utilize network testing tools to detect and measure crosstalk, within your Ethernet cables effectively. Beneficial instruments such, as cable testers and network analyzers can accurately locate areas of concern. Confirm the integrity of your setup.
The interference among Ethernet cables in fast computer networking environments
As networks advance to accommodate speeds the concern of Ethernet Cable Crosstalk grows more significant. With Gigabit Ethernet and speeds exceeding 10 Gigabit Ethernet, it is crucial to implement sturdy cabling solutions to manage the bandwidth effectively and reduce interference. Especially, for applications requiring speeds:
For performance and to reduce signal interference it's recommended to opt for Cat 6A or higher-grade cables.
Use shielded cables, in places where there is a lot of interference.
Make sure to update the patch panels and connectors so they can keep up with the performance of your cables.
Dealing with issues of interference in Ethernet cables caused by crosstalk
If you think that interference, from Ethernet cable crosstalk, might be causing issues, with your network connection. Follow these instructions:
Use a cable tester to figure out which cables are causing problems by detecting crosstalk.
Check the arrangement of the cables by looking for cables that are bundled tightly together or have bends and ensuring they are not too close, to power lines.
Make sure to switch out any cables, with quality or undamaged cables of a higher category.
Let's tidy up the cable management by separating the Ethernet cables and making sure they are properly spaced away, from sources.
The upcoming developments in the design of Ethernet cables
To tackle the issue of Ethernet Cable Crosstalk and drive progress forward in the industry manufacturers are constantly coming up with innovations and technologies. Some of the advancements include:
Cutting edge Shielding Materials Development; Innovative materials are, in the works to offer defense against interference.
Enhanced methods of twisting cables assist in isolating signal pairs. Decreasing interference, between them.
In settings where dealing with Ethernet cable crosstalk proves to be an issue fiber optic cables provide a solution free, from such interference.
Basic Home Network
The interference, from Ethernet Cable Crosstalk can have an impact on how your network works and how reliable it is for you to use regularly by knowing what causes it and following the best methods to stop it from happening in the first place; you can make sure all your devices communicate smoothly with each other whether its just for a basic home network or a bigger business setup focusing on getting good quality cables installed correctly and being able to fix any issues that come up will keep you from running into problems, with Ethernet Cable Crosstalk.
In today's expanding networking landscape, it is increasingly important to tackle crosstalk head-on, with knowledge and preemptive actions to establish a network infrastructure that can endure the passage of time.
Crosstalk in an Ethernet cable pertains to interference (EMl) between the wires inside the cable or between neighboring cables.
The interference from Ethernet Cable Crosstalk can have an impact on how your network works and how reliable it is for you to use regularly by knowing what causes it and following the best methods to stop it from happening
