When it comes to setting up cables in buildings, safety and adherence to building codes are priorities. This brings us to terms like plenum rated and riser rated cables, which are important for ensuring fire safety standards are met in parts of a building. Each rating comes with its set of rules, so knowing the distinction between plenum rated and riser rated cables is crucial in choosing the type for different uses.
To grasp the contrast between the plenum rated and riser rated cables, it's essential to comprehend the definitions of these terms foremost. Both terms are connected to fire safety guidelines set by the National Electrical Code (NEC) as various international building codes. Plenum rated and riser rated cables are differentiated based on the settings where they can be installed securely.

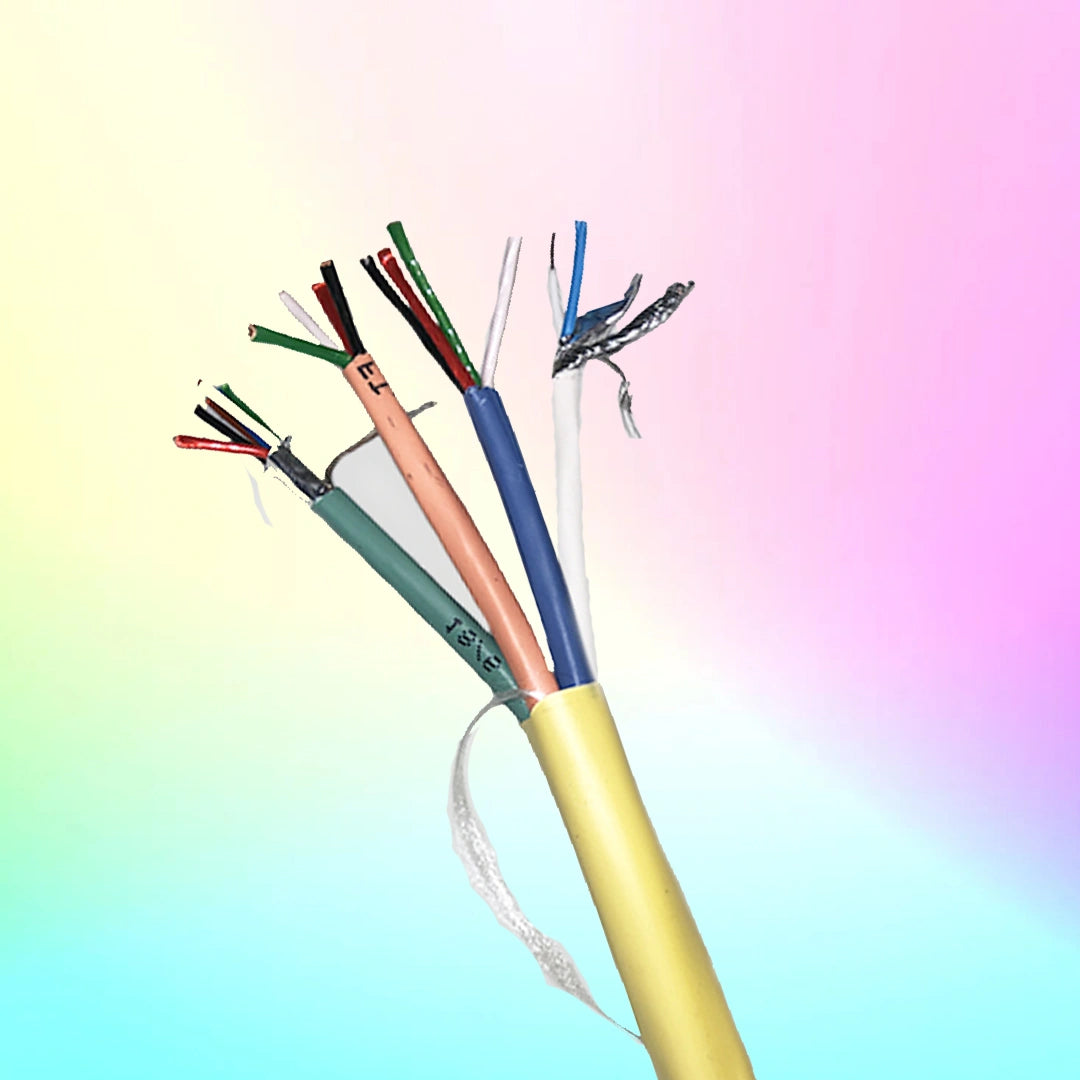

Plenum rated cables are specifically made to be used in plenum spaces within buildings that are dedicated to air circulation, for HVAC systems like heating and ventilation units as air conditioning units too. This important cable type is typically installed above drop ceilings or beneath raised floors to assist in the circulation of air within the building environment. Plenum rated areas can potentially serve as pathways for flames and harmful smoke in case of a fire emergency. When it comes to plenum rated cables they have to be manufactured using fire materials that produce little smoke and harmful gases in case of exposure, to extreme heat.
Riser rated cables are designed for use in plenum environments like vertical shafts or connections between different floors of a building known as risers where electrical and communication cables are frequently routed through them with less strict fire resistance requirements compared to plenum rated cables due to the lower risk of toxic fume circulation, in those areas.
Why do fire ratings matter much?
Ensuring fire safety is crucial, in all buildings as it helps safeguard lives and assets from fire incidents. Plenum Rated cables designed for fire protection play a role in minimizing the spread of fire and ensuring the safety of individuals and belongings within a building. When a fire occurs in a building various areas can swiftly become filled with smoke and dangerous gases. Plenum rated spaces present a hazard due to their nature allowing for rapid circulation of air containing harmful substances, like toxic gases.
The primary purpose, behind these fire ratings is to control and minimize the propagation of fires and harmful fumes within buildings. Typically building regulations mandate that cables passing through plenum areas must have plenum ratings. For areas where air circulation works as crucial such, as risers; riser rated cables provide protection at a more budget friendly cost.
Plenum rated spaces are usually found above suspended ceilings or beneath raised floors and are utilized for air circulation in HVAC systems. Given that these spaces handle air return functions and can rapidly disperse smoke and hazardous fumes in the event of a fire, within a building. This poses a risk that underscores the importance of utilizing fire materials in these regions. The wiring deployed in plenum spaces must feature a covering that restricts the spread of flames and minimizes smoke and noxious gas emissions. This unique jacket is typically crafted from low-smoke PVC. Fluorinated ethylene polymer ( FEP ).
Ascending Platforms
Vertical riser spaces are different, from plenum spaces as they serve as the pathways connecting floors within a building for cable installation purposes, with enclosed structures to limit smoke and fume spread risks while still needing a level of fire resistance that's less strict compared to plenum rated cables standards. Riser cables typically have jackets crafted from materials that possess self-extinguishing properties to restrict flame spread; however, they may emit smoke compared to plenum cables.
Cables with a plenum rated need to meet the fire safety standards established by organizations like Underwriters Laboratories (UL). They are required to pass the UL 910 test. Commonly known as the Steiner Tunnel test. Which assesses flame propagation and smoke concentration, in a plenum area rigorously.
Cables, with riser ratings undergo testing based on UL 1666 standards which assess flame resistance in a setting with strict criteria compared to the UL 910 test for plenum areas where smoke density control plays a more significant role due to air circulation differences, between riser and plenum spaces.
Cables with plenum rated ratings are typically crafted from materials, like FEP or low-smoke PVC which can endure temperatures and reduce smoke emissions effectively in plenum areas to ensure safety despite their cost.
When it comes to riser rated cables compared to plenum rated cables they typically use materials such, as PVC that provide decent flame resistance but aren't required to adhere to the same low smoke emission criteria as plenum rated cables do making riser cables a more cost-effective option due to the variance, in materials used between the two types.
When choosing between plenum rated and riser rated cables, for installation purposes the key consideration revolves around the location of installation spaces it applies to each type of cable rating system. For instance, plenum rated cables are essential for use in plenum rated spaces which are commonly found in areas that have HVAC systems circulating air within them. On the other hand riser riser-rated cables are better suited for use, in riser spaces which refer to passages or conduits that link various floors within a building.
Plenum rated cables are pricier compared to riser-rated cables, due to their fire resistance and the use of high-quality materials used in their construction process. The cost disparity between the two types of cables can be substantial, for projects that involve a significant amount of cabling in plenum spaces. When building codes allow for its use; riser-rated cables are often favored as they come at a price point.
In areas around the world, there are rules governing the placement of plenum rated and riser-rated cables. The National Electrical Code (NEC) and various global standards outline criteria to guarantee the cable type, for every situation. Not following these guidelines could lead to penalties, safety concerns, and complications during building inspections.
Fire safety is crucial, in ensuring the safety of areas, like plenum rated cables which offer fire resistance to minimize the chances of fire spreading in vital spaces.
Minimal Smoke Production. These cables are designed to emit levels of smoke and harmful fumes to ensure the safety of individuals, during evacuations.
Plenum rated cables meet building regulations to guarantee utilization, in plenum areas.
Plenum rated cables are pricier than riser-rated cables because of the materials they use.
The inflexibility of plenum rated cables due, to the materials used might restrict their installation possibilities in certain situations.
Riser rated cables offer a budget option compared to plenum rated cables, for use in riser spaces.
Installation Tip; Riser rated cables are typically more pliable and simpler to set up in vertical areas.
In areas that are not critical, to safety concerns such as riser spaces where fire safety standards are met by riser-rated cables; these cables are deemed suitable for use, in plenum spaces.
Riser-rated cables have limited applications, in plenum spaces due to restrictions on their usage, in environments.
In case of a fire outbreak, the riser-rated cables produce an amount of smoke compared to plenum rated cables making them less suitable, for spaces, with airflow concerns.
Typical Uses of Plenum rated and Riser Rated Cables
Plenum rated cables are commonly used in applications.
Cables with plenum rating are necessary for wiring that goes through air duct systems and HVAC systems.
Drop ceilings and raised floors are commonly found in buildings to facilitate air circulation.
In data centers that have a concentration of cables and plenum spaces it is essential to use plenum-rated cables for safe installation purposes.
Applications of Cable Rated for Rising Areas
Vertical shafts and conduits often use riser-rated cables to connect floors within a building.
Non-Essential Spaces. Ideal for crowded areas with foot traffic.
Residential complexes typically make use of story buildings, particularly in cases where the riser spaces do not need plenum-level fire safety measures.
Selecting the Correct Cable Type for Your Needs: Plenum rated vs Riser rated
When deciding between plenum and riser rated cables, for your needs take into account the following considerations:
Make sure you have a grasp of the building codes in your area to prevent penalties and prioritize safety.
Opting for riser rated cables in plenum areas to save money if budget limitations are a concern.
For safety measures in a place where strict fire safety standards are required, opting for plenum rated cables as they offer a level of safety.
When setting up in plenum rated areas go with plenum rated cables. Opting for riser rated cables for shaft and riser installations.
High Technology
The distinction between plenum rated and riser rated cables stems from their fire resistance capabilities the materials used in their construction, where they are installed and the regulations they must adhere to plenum rated cables are specifically crafted for areas where air circulation could potentially facilitate the spread of flames and release fumes.
They offer fire resistance. Produce minimal smoke when compared to other types. On the other hand riser rated cables are appropriate for passages and less critical areas meeting basic fire safety criteria without the strict specifications required for plenum rated cables. Choosing the kind of cable according to these variations is crucial for guaranteeing safety standards are met and costs are kept manageable in construction endeavors.
