Having a strong and dependable network connection is essential. Network cables are the heroes that enable communication between our devices by establishing reliable wired connections for data transmission purposes. However; like any piece of technology out there in the world; network cables too can run into problems from time to time; leading to disruptions, in data flow and connectivity issues that can be quite frustrating to deal with. Being able to troubleshoot these problems is a valuable skill that not only saves you time and money but also helps you avoid unnecessary stress and headaches down the line.
This article provides an overview of troubleshooting network cables and addresses typical issues encountered in the process well as the essential tools and recommended approaches to tackle them effectively for individuals, at all skill levels, in the IT field.
Let's delve into the world of network cables and their significance, in connectivity.
Network cables are tools, for linking network devices like computers and routers to facilitate data sharing, among them effectively.
The Ethernet cables, like Cat5e, Cat6 and Cat6a, are commonly seen in Local Area Networks (LAN). These cables are usually made of copper and transfer data through signals.
Optical fibers are cables that employ signals, for data transmission typically utilized for long-distance links or rapid data exchanges.
Wireless networks have become widely used these days; however, network cables continue to provide speeds well as more stability and security which are key elements, for numerous network operations. It is important to grasp the functioning of these cables and be adept at resolving any problems that may crop up to ensure an effective network operation.
Some factors can impact the efficiency of a network cable. From wear and tear to intricate configuration issues. Some encountered issues include:
One common problem often seen with network cables is wear and tear over time causing damage, to the casing of the cable itself. Either through fraying bending or being cut. Which can then disrupt its ability to transmit data effectively Pet movements furniture placement and even frequent foot traffic are potential culprits, in damaging cables especially when installation procedures are not followed diligently.
At times the problem could be a connection causing trouble, with the network cable not being properly plugged into the port on both ends resulting in intermittent connectivity issues and even total loss of connection sometimes faulty RJ45 connectors, at the end of the cable can cause performance issues too.
Ethernet cables have length restrictions to consider. For instance; a typical Cat5e or Cat6 network wire shouldn't go over 328 feet to avoid data loss or signal deterioration issues.
Electromagnetic interference (EM ) can cause disruptions, in data transmission through a network cable. Appliances such as microwaves, cordless phones, and other electronic devices produce signals that may disrupt data transmission. Likewise, crosstalk happens when signals from one cable seep into another cable leading to a decline, in performance.
Using a network cable or a low-quality one can result in connectivity problems. For instance situations, like using a Cat5 cable where Cat6 speeds are required can hinder your network. Similarly inexpensive or poorly constructed cables might have wiring problems that could result in disconnections or sluggish data transfer rates.
Essential Equipment for Troubleshooting Network Cables
Before you start solving the problem at hand it's crucial to ensure you've got the equipment, for the task ahead of you! Here are a few key tools that could come in handy when dealing with network cables:

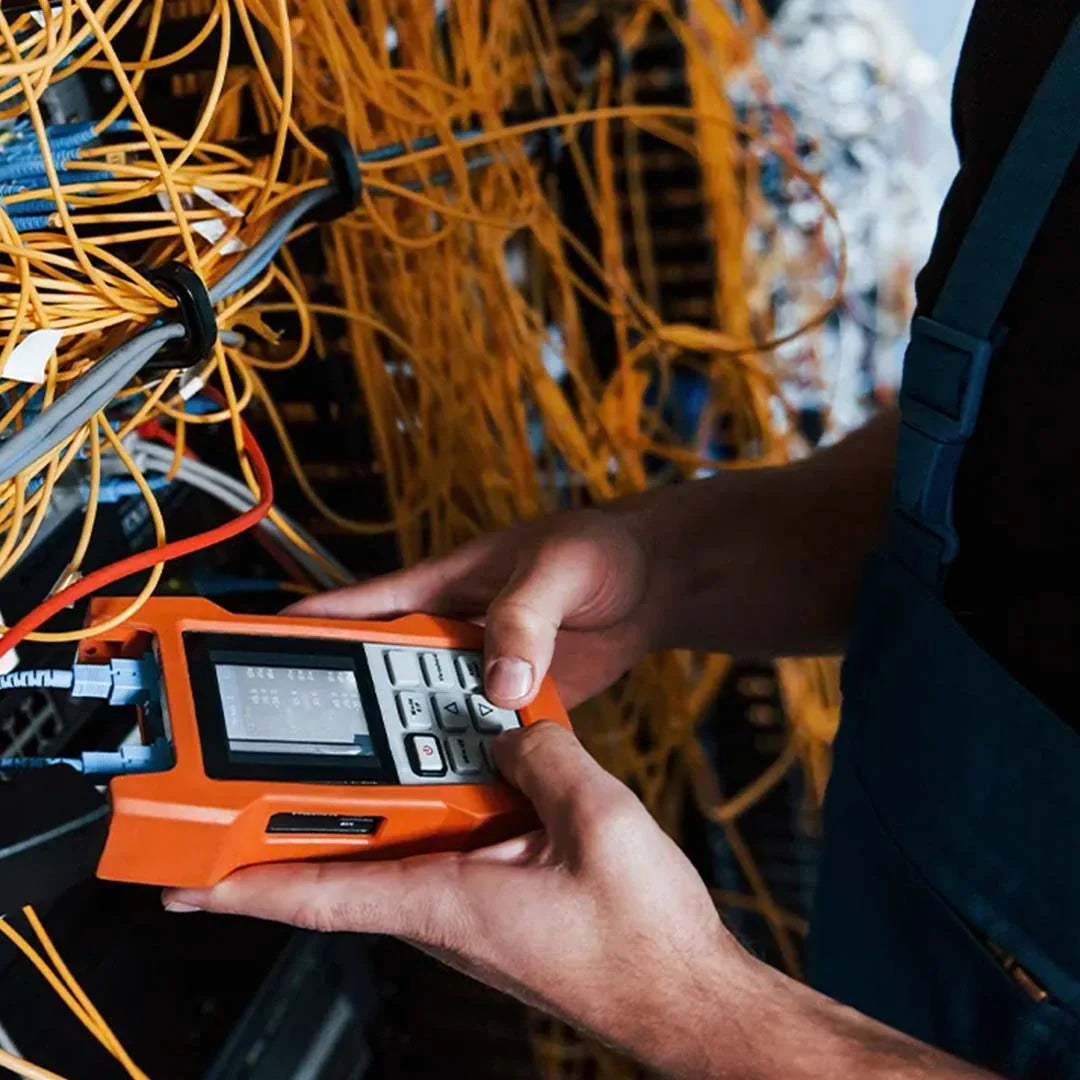

Testing cables with a cable tester
To test the network cables reliability and functionality thoroughly for any issues, like damaged wires or incorrect pin setups that might be hidden from sight a cable tester is employed.
You'll need a crimping tool to attach RJ45 connectors to the ends of a network cable ensuring a connection, between the cables wires and the connector.
Category Multimeter
You can utilize a multimeter to check the signals flowing through the network cable and make sure it's transmitting data correctly.
Punch-down tools are essential, for network installations.
When dealing with cabling or patch panels in networking setups a punch-down tool is typically employed to insert and secure the individual wires of a network cable into a keystone jack or patch panel.
Network Analyzer
To troubleshoot problems effectively using a network analyzer is beneficial. It aids in identifying issues concerning network performance like delays, in data transmission packet loss occurrences or data congestion points.
When dealing with a network cable problem it's essential to take an approach to pinpoint and fix the issue effectively. Here's a walkthrough to help you out step by step:
1.-Visual Examination.
Firstly it's an idea to inspect the network cable before you start using any tools. Take a look, for any clear signs of damage, like cuts or bends, and make sure both ends of the cable are connected securely to their ports.
Make sure the RJ45 connectors are, in condition and not bent or damaged; if they are not, in shape crimp the cable or replace the connector.
2.-Checking the connectivity.
Check the link, between the two devices joined via the network cable by swapping it with a cable that you know is working properly. If the connection functions with the cable, in place of the one it's probable that the original cable is defective.
Try testing the network cable on another port or device to confirm if the problem lies with the cable rather than the hardware.
3.-Testing the Continuity of Cables.
Utilize a cable tester to verify continuity, which aids in assessing the functioning of all eight wires, within the network cable and ensuring the accuracy of the pin configuration.
Make sure to conduct the test, for both straight-through and crossover setups if you're uncertain, about the cable type.
4.-Problems with Crimping
If you've pinpointed a network cable as the culprit and it seems intact but still not functioning properly; the root of the issue may be, in the way it was crimped together. Make sure that the wires, inside the cable are arranged correctly within the RJ45 connector and firmly crimped in place.
"If needed cut the cable. Redo the connector by aligning the wires correctly following either the T568 A or T568 B standard."
5.- Assessing the quality of the cable and ensuring it is compatible.
If you're still facing problems, with your connection issues you might want to check the quality and suitability of the network cable you are using; For instance, using a Cat 7 cable of Cat 8 in your network configuration could lead to speeds or subpar performance; Also keep in mind that cheap cables might have inadequate insulation causing signal loss or interference.
Remember to opt for top-notch cables, from known brands and make sure they are suitable, for the speed and distance needed for your network setup.
When dealing with network cable problems and glitches often sorting them out can be helpful; however, it's more beneficial to take measures to avoid these issues altogether from happening in the first place. Here are a few key strategies to keep your network cables in shape and running smoothly;
Utilize cable organization solutions.
Maintaining cable organization is essential to prevent any harm caused by bending or tangling and to avoid stepping on them. Utilize cable trays, along with ties and organizers to ensure your cables are orderly and not, under strain.
Steer clear of placing cables to sources of interference.
Earlier on we mentioned that network cables could face interference, from sources around them. So it's best to steer off running cables near gadgets, like microwaves or cordless phones that give off electromagnetic signals to avoid any issues.
Consider using cables in areas, with levels of interference.
If there's a lot of interference in your surroundings you might want to think about using network cables, like STC or FTP cables, with protection to guard against EMI and crosstalk.
Replace any worn-out cables.
Make sure to swap out any damaged network cables without delay. Regularly check your cables for any signs of wear and tear. Replace them as necessary to avoid issues.
Regularly Test the cables for labeling.
Remember to tag your network cables, for identification when problem-solving and regularly test them to spot any problems early on.
Data Transmission
When setting up a network system of any kind network cables play a role, in ensuring effective data transmission. Detecting and addressing network cable problems demands a blend of expertise tools and a methodical strategy. Whether it's dealing with connectivity hitches or tackling intricate challenges such as EMI interference being able to identify and fix these issues is key, to keeping your network running smoothly.
By following the steps, for fixing issues as described in this guide and using the methods available, you can lessen the amount of time your network is down and ensure it runs efficiently without interruptions. Be it dealing with connectors that are damaged or crimped incorrectly or even using cables of quality. An understanding of troubleshooting network cables will give you the confidence needed to manage your wired connections effectively.
