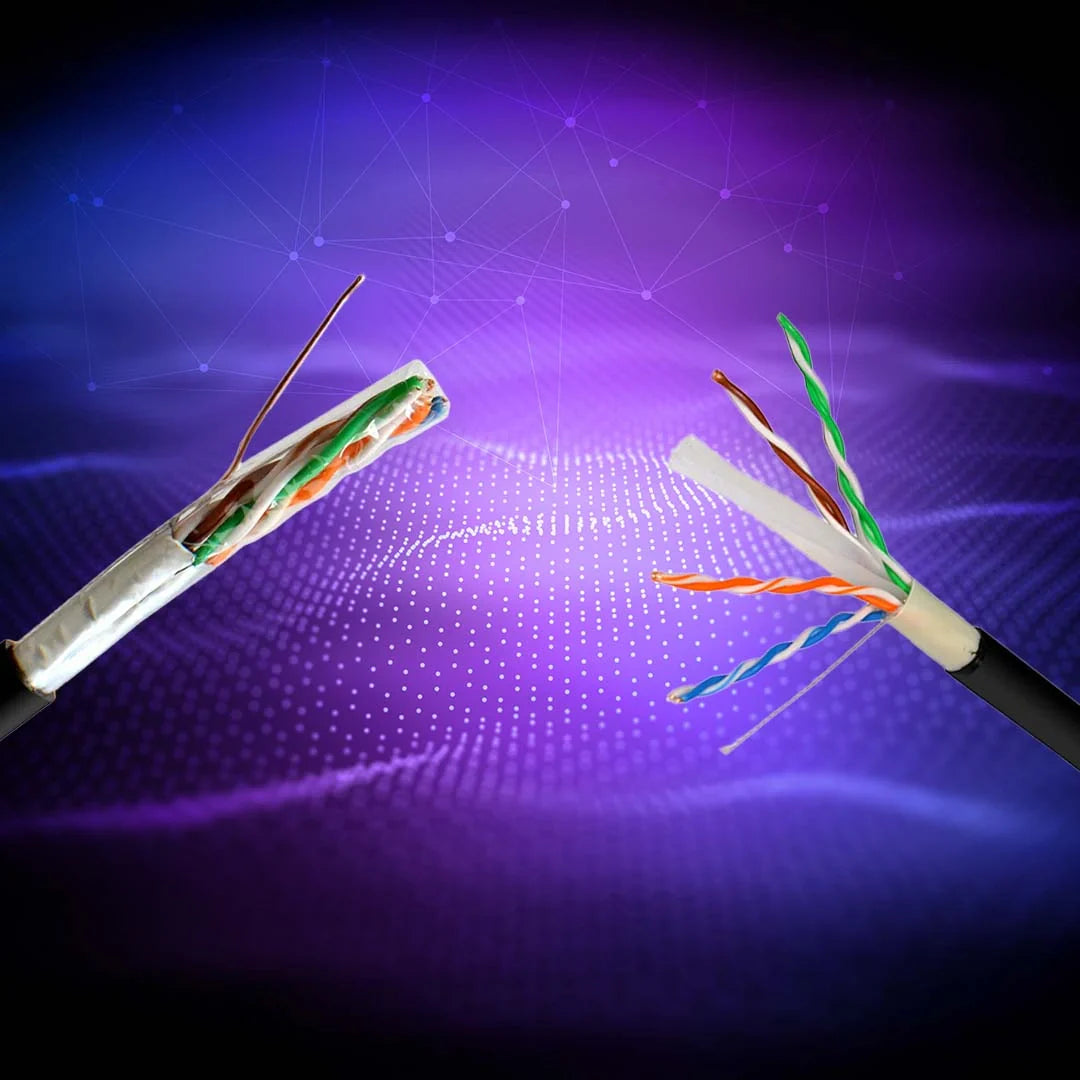

Shielded vs. Unshielded Ethernet Cables: Understanding the Wired Connection

Shielded vs. Unshielded Ethernet Cables: Understanding the Wired Connection

Ethernet cables serve as the veins that carry data from one point to another, forming the backbone of our modern digital infrastructure. Whether in homes, offices, or data centers, Ethernet cables play a crucial role in ensuring seamless connectivity. However, not all Ethernet cables are created equal. One of the fundamental differentiators among them is whether they are shielded or unshielded. Understanding the differences between shielded and unshielded Ethernet cables is essential for optimizing network performance and reliability.

What are Ethernet Cables?

Before delving into the shielded vs. unshielded debate, it's important to understand what Ethernet cables are and their significance in networking. Ethernet cables, also known as RJ45 cables or LAN cables, are used to connect devices within a local area network (LAN). They facilitate the transmission of data between devices such as computers, routers, switches, and other network-enabled devices.

Ethernet cables come in various categories, such as Cat5e, Cat6, Cat6a, and Cat7, each offering different levels of performance and bandwidth capacity. These cables consist of twisted pairs of copper wires encased in a protective outer jacket. The twists in the wire pairs help reduce electromagnetic interference (EMI) and crosstalk, thereby ensuring reliable data transmission.

Shielded Ethernet Cables

Shielded Ethernet cables, as the name suggests, are equipped with an additional shielding layer around the twisted pairs of copper wires. This shielding is typically made of materials like aluminum foil or braided copper. The purpose of this shielding is to protect the internal wires from external electromagnetic interference, commonly generated by nearby electrical devices, power cables, or other sources of electromagnetic radiation.

The shielding in these cables acts as a barrier, preventing electromagnetic interference from disrupting the signals transmitted through the Ethernet cables. This can be particularly beneficial in environments where there are high levels of electromagnetic interference, such as industrial settings or areas with dense electrical equipment.

Unshielded Ethernet Cables

On the other hand, unshielded Ethernet cables, also known as unshielded twisted pair (UTP) cables, lack the additional shielding layer found in shielded cables. Instead, they rely solely on the twists in the wire pairs to mitigate electromagnetic interference. While unshielded cables may be more susceptible to EMI compared to their shielded counterparts, they are often more cost-effective and easier to install.

Unshielded Ethernet cables are commonly used in residential and office environments where the levels of electromagnetic interference are relatively low. They offer reliable performance for everyday networking tasks and are suitable for most standard applications.

Differences in Performance

When comparing shielded and unshielded Ethernet cables, one of the primary considerations is their performance in different environments. Shielded cables excel in environments with high levels of electromagnetic interference, providing better signal integrity and reducing the risk of data corruption or packet loss.

In contrast, unshielded cables may be more prone to signal degradation in environments where there are significant sources of electromagnetic interference. However, for typical residential or office settings where interference levels are minimal, unshielded cables can offer performance that is more than adequate for everyday use.

Installation and Flexibility

Another factor to consider when choosing between shielded and unshielded Ethernet cables is the ease of installation and flexibility. Shielded cables tend to be bulkier and less flexible due to the additional shielding layer. This can make them more challenging to route through tight spaces or install in areas where flexibility is essential.

On the other hand, unshielded cables are generally thinner and more flexible, making them easier to work with during installation. They can be bent and maneuvered more easily, allowing for greater versatility in routing cables through walls, ceilings, or conduits.

Cost Considerations

Cost is often a significant consideration when selecting Ethernet cables for a networking project. Shielded Ethernet cables, with their additional shielding layer, tend to be more expensive than unshielded cables. The cost difference can vary depending on factors such as cable category, length, and manufacturer.

For budget-conscious projects or installations where electromagnetic interference is not a significant concern, opting for unshielded Ethernet cables can provide cost savings without sacrificing performance. However, in environments where reliable signal transmission is paramount, the investment in shielded cables may be justified to ensure network stability and uptime.

Applications and Use Cases

The choice between shielded and unshielded Ethernet cables ultimately depends on the specific requirements of the networking environment. Shielded cables are well-suited for applications where EMI is a concern, such as industrial facilities, healthcare facilities, or data centers. These environments often have high concentrations of electrical equipment or machinery, increasing the risk of electromagnetic interference.

Unshielded Ethernet cables are more commonly used in residential, commercial, and office environments where electromagnetic interference levels are lower. They are suitable for tasks such as connecting computers, printers, routers, and other devices within a typical home or office network.

Future Trends and Emerging Technologies

As the demand for high-speed networking continues to escalate, Ethernet cables are evolving to meet the ever-increasing performance requirements of modern applications. Emerging technologies such as Power over Ethernet (PoE), 5G networks, and Internet of Things (IoT) devices are driving the need for faster data transmission rates, lower latency, and enhanced reliability.

In response to these demands, manufacturers are developing next-generation Ethernet cables capable of supporting multi-gigabit speeds over longer distances while maintaining robust noise immunity. Advanced shielding techniques, improved cable designs, and enhanced materials are being employed to push the boundaries of Ethernet cable performance.

Additionally, the advent of technologies such as 2.5GBASE-T and 5GBASE-T is paving the way for faster Ethernet speeds beyond the traditional gigabit standard. These advancements underscore the importance of selecting the right type of Ethernet cable to future-proof network infrastructure and ensure compatibility with emerging technologies.

Modern networking infrastructure

Ethernet cables form the backbone of modern networking infrastructure, facilitating the transmission of data between devices within a local area network. When choosing between shielded and unshielded Ethernet cables, it's essential to consider factors such as performance, installation flexibility, cost, and the specific requirements of the networking environment.

Shielded Ethernet cables offer superior protection against electromagnetic interference, making them ideal for environments with high levels of EMI. However, they can be more expensive and less flexible than unshielded cables. Unshielded Ethernet cables, while more susceptible to interference, are often more cost-effective and easier to install, making them suitable for typical residential and office environments.

By understanding the differences between shielded and unshielded Ethernet cables, network administrators and homeowners can make informed decisions to ensure optimal network performance and reliability. Whether shielding against interference in a noisy industrial environment or connecting devices in a home office setup, choosing the right Ethernet cables is essential for maintaining a stable and efficient wired connection.
