Keystone jacks have long been a crucial component in networking infrastructure, providing a reliable and convenient means of connecting network cables to walls, patch panels, and other devices. Recently, new RJ45 keystone jacks have entered the market, offering an improved method of terminating and cutting wires.
The new keystone jacks feature a unique 8-wire termination design, which allows for faster, more efficient installation. With traditional keystone jacks, wires must be trimmed to a precise length before being inserted into the jack, which can be time-consuming and tedious. The new keystone jacks eliminate this step by using a simple and intuitive wire guide, which automatically positions each wire to the correct length before termination.
This innovation not only saves time, but it also reduces the risk of errors or mistakes that can occur when manually measuring and cutting wires. Additionally, the keystone jacks feature a tool-less design, eliminating the need for specialized tools or equipment. This makes installation more accessible and reduces the overall cost of the project.
One of the most significant advantages of the keystone jacks is their compatibility with both solid and stranded cables, making them a versatile solution for a variety of networking applications. They are also compatible with Category 5e, Category 6, and Category 6A cabling standards, ensuring that they meet the latest industry standards for performance and reliability.
Another advantage of the new keystone jacks is their compact size. They feature a low profile design that fits seamlessly into standard keystone wall plates and patch panels, making them an ideal choice for installations where space is limited. They are also available in a variety of colors, allowing for easy identification and organization of cables.
In addition to the new keystone jacks, a cutting tool has been developed to make the installation process even easier. The cutting tool is designed to work seamlessly with the new keystone jacks, providing a precise cut every time. This eliminates the need for additional tools, such as wire cutters or strippers, streamlining the installation process and saving time.
Overall, the new RJ45 keystone jacks with 8-wire termination and cutting tool represent a significant advancement in networking infrastructure. With their intuitive design, tool-less installation, and compatibility with a variety of cabling standards, they are an excellent choice for any networking project. Whether you are a professional network installer or a DIY enthusiast, these new keystone jacks and cutting tool are sure to provide a reliable and efficient solution for all your networking needs.
Proper termination of keystone jacks is essential to ensure optimal signal transmission, minimal signal loss, and a reliable network connection. Inadequate termination can lead to signal interference, reduced data speeds, and even network downtime. It is crucial to follow best practices and utilize the right tools to achieve accurate and reliable terminations.
Prepare the Cable: Begin by carefully stripping the outer jacket of the Ethernet cable using a cable stripper or utility knife. Be cautious not to damage the inner twisted pairs.
Untwist and Arrange Pairs: Unwind and straighten the twisted pairs, arranging them according to the TIA/EIA-568 color code: white/orange, orange, white/green, blue, white/blue, green, white/brown, and brown. Ensure the wires are untwisted only as much as necessary for termination.
Trim Excess Wires: Using a cable cutter or scissors, trim any excess wire length to ensure a clean termination. Leaving excess wire can lead to signal interference and poor contact.
Insert Wires into Keystone Jack: Carefully insert each wire into its corresponding color-coded slot on the keystone jack. Follow the 568B wiring standard for compatibility with most networking setups.
Terminate Wires: Once the wires are inserted, use a punch-down tool to firmly press the wires into the slots, ensuring proper contact and connection. The punch-down tool secures the wires in place and trims any excess.
Test the Connection: After termination, it's crucial to test the keystone jack using a cable tester to verify that each wire is properly connected and transmitting signals without interference.
As technology advances, so do the tools and equipment designed to simplify and enhance the termination process of keystone jacks. These cutting-edge tools contribute to increased efficiency, accuracy, and overall effectiveness in establishing network connections. Let's explore some of these innovative tools:
Automatic Wire Cutter: An automatic wire cutter is a precise tool that eliminates the guesswork in wire cutting. It ensures consistent wire lengths, minimizing signal distortion and optimizing signal quality.
Punch-Down Tool with Adjustable Impact: This tool allows technicians to control the impact force during the punch-down process. This adjustability is crucial in preventing over- or under-punching, leading to reliable terminations.
Cable Stripper with Depth Gauge: A cable stripper equipped with a depth gauge ensures that the outer jacket is stripped to the correct length, preventing damage to the inner conductors. This tool is particularly useful when dealing with different cable diameters.
Keystone Jack Tester: A keystone jack tester is specifically designed to assess the integrity of terminated keystone jacks. It provides a quick and efficient way to identify any connection issues before the network goes live.
Cable Management Accessories: While not directly involved in the termination process, cable management accessories such as cable ties, clips, and organizers help keep the terminated cables neat, organized, and free from strain or damage.

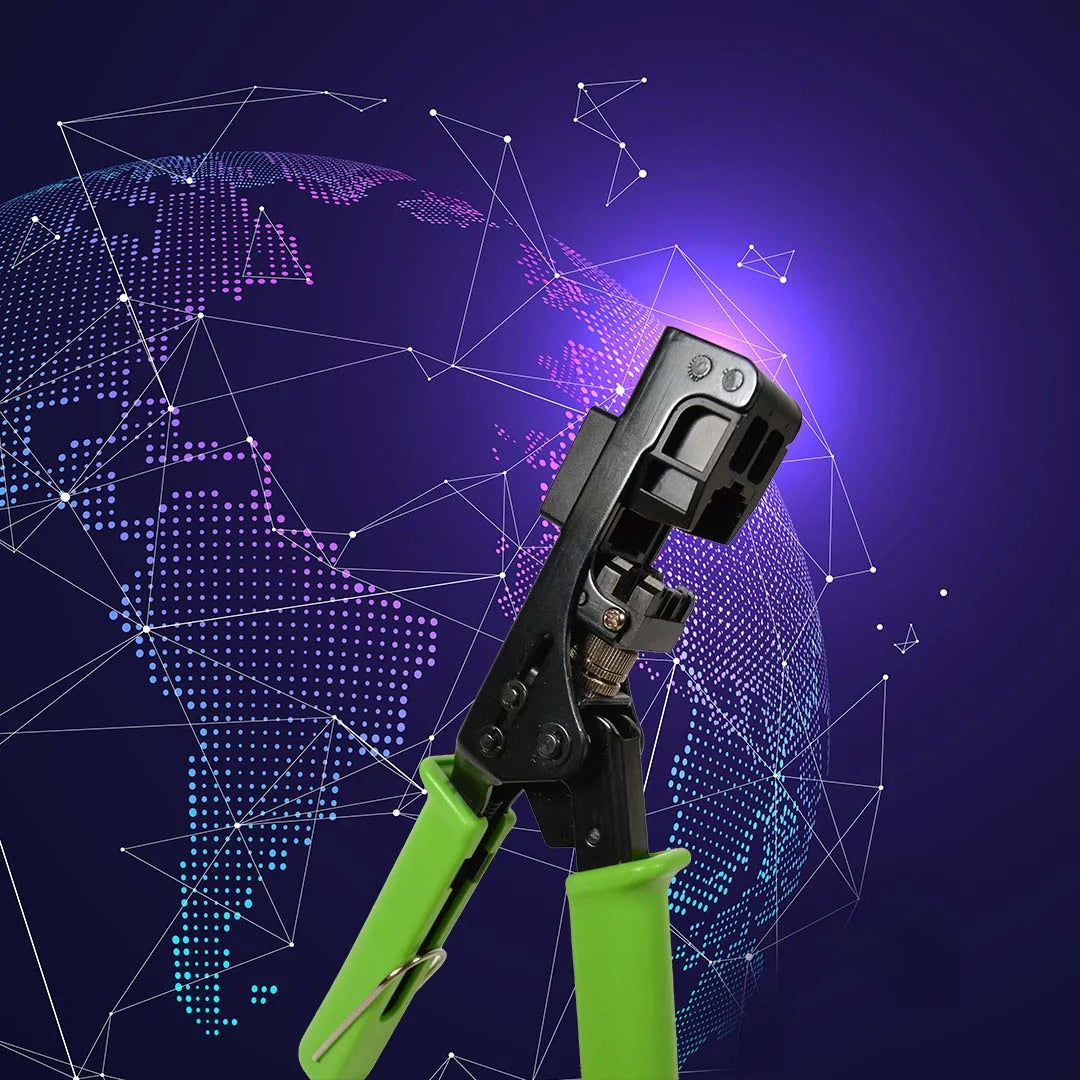

In resume, precision and efficiency are paramount, and the RJ45 Keystone Jacks 8 Wires Termination & Cutting Tool delivers on both fronts. With its universal compatibility, eight-wire termination capability, durability, and user-friendly design, this tool has become an indispensable asset for professionals and DIY enthusiasts alike. As technology continues to advance, the demand for reliable network connections will persist, making tools like the RJ45 Keystone Jacks 8 Wires Termination & Cutting Tool essential for those striving to stay at the forefront of the networking landscape. So, whether you're a seasoned network installer or a budding enthusiast, investing in this tool is a step towards unlocking the true potential of your networking endeavors.
