The type of cable you choose can have an impact, on how well your network performs and how reliable it is. If you're looking for high speed network options Cat6A Ethernet cables are a choice. In this article we'll explore what Cat6A Ethernet cables are about their advantages and tips on selecting the one for your specific requirements.

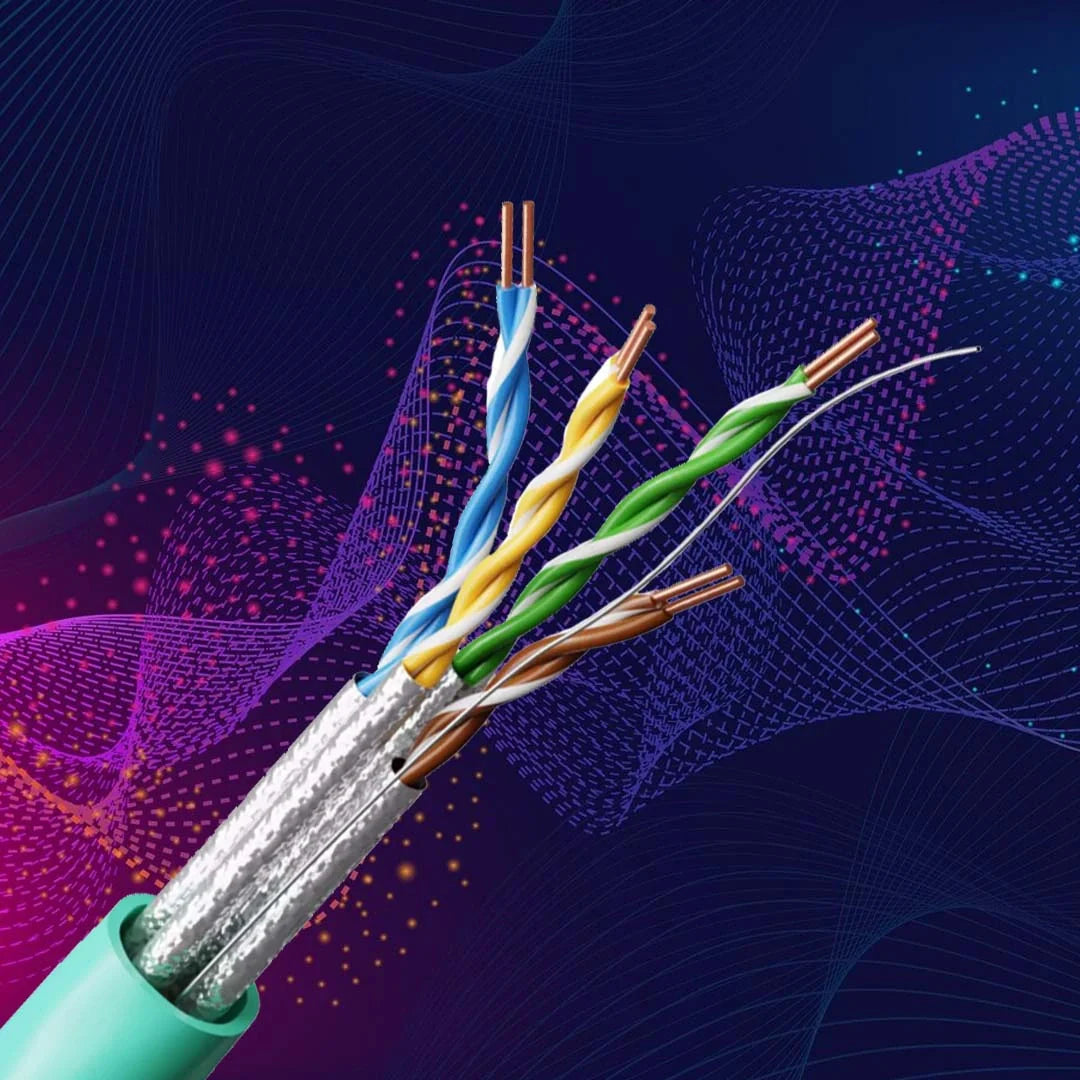

Getting to Know Cat6A Ethernet Cable Cat6A short for Category 6A is a version of Cat6 cabling. The "A" signifies "augmented," indicating its performance compared to its predecessor. With the ability to support 10 Gigabit Ethernet over distances up to 100 meters Cat6A offers double the bandwidth of Cat6 cables.
Enhanced Bandwidth and Speed; Capable of handling frequencies up to 500 MHz (versus the 250 MHz limit of Cat6 cables) Cat6A Ethernet cables facilitate data transmission rates – making them ideal for data applications.
Shielding: To tackle issues like crosstalk and electromagnetic interference (EMI) Cat6A Ethernet cables feature better shielding options such, as individually shielded twisted pairs (S/FTP) or overall shielding (F/UTP).
Backward Compatibility: Cat6A cables can work with both Cat6 and Cat5e cables allowing you to use an Ethernet cable in network setups seamlessly.
Future Proofing: Investing in Cat6A Ethernet cables can help prepare your network for increasing demands, for data rates and reliable connections in the future.
While Cat6A cables provide top notch performance they may not be needed for every situation. Here are some scenarios where using Cat6A cables can be
High.
Density Environments: In places like data centers or large office buildings where multiple cables are closely packed together the enhanced shielding of Cat6A cables can reduce interference and maintain signal quality.
10 Gigabit Ethernet Networks: If your network requires 10 Gigabit Ethernet, up to 100 meters opting for Cat6A Ethernet cables is crucial. They are specifically designed to handle the frequencies and data rates of 10GBase T networks.
Future Expansion: For businesses looking at growth or upgrades investing in Ethernet cables guarantees that your infrastructure can accommodate higher data rates and increased network traffic without having to replace the cabling. Low latency is beneficial, for applications like VoIP, video conferencing and online gaming as Cat6A Ethernet cables offer improved performance and reduced interference.
Knowing these variations can help you choose the one;
1. Unshielded Twisted Pair (UTP): The type, UTP cables lack extra shielding but feature twisted pairs to minimize crosstalk. They work well in environments with EMI.
2. Shielded Twisted Pair (STP): STP cables have an added shielding layer around each wire pair for protection against EMI. They are suitable for settings with EMI.
3. Foiled Twisted Pair (FTP): FTP cables come with an overall foil shield around all pairs to combat crosstalk and EMI. They are recommended for areas with interference.
4. Shielded Foiled Twisted Pair (S/FTP): S/FTP cables offer shielding for each pair along with a shield providing maximum defense against crosstalk and EMI. These are ideal, for highly interfered environments.
Points to consider. When you're, in the market for an Ethernet cable it's important to consider a key factors to make sure you choose the right one for your specific needs:
Cable Length: Measure the distance between your network devices to determine the correct cable length. Keep in mind that Cat6A cables can support up to 100 meters for 10 Gigabit Ethernet connections.
Shielding Requirements: Evaluate the amount of interference (EMI) in your environment. In areas with interference it's advisable to opt for shielded options like STP or S/FTP cables.
Plenum vs. Non Plenum: Plenum rated cables come with insulation that meets fire safety standards for use in plenum spaces (air circulation areas).
If your cabling will be running through these spaces it's best to go with plenum rated Cat6A Ethernet cables.
Connector Quality; Make sure that the connectors (RJ45) are quality and capable of handling the frequencies associated with Cat6A cables. Poor quality connectors can lead to performance degradation.
Durability: For installations where cables may face stress, such as settings seek out Cat6A Ethernet cables with rugged and durable jackets.
Installation Tips for Cat6A Ethernet Cable
Proper installation is essential, for getting the most out of your Ethernet cables. Here are some helpful tips:
Avoid Excessive Bending: much bending can harm the structure of the cable and impact performance. Remember to adhere to the manufacturers recommendations regarding the minimum bend radius of the cable.
When terminating the cable avoid untwisting the pairs. Keeping the twists close, to the connector helps reduce crosstalk.
Ensure grounding for shielded Cat6A Ethernet cables to prevent interference (EMI) and maintain signal integrity.
Utilize cable management solutions such as trays, racks and clips to keep cables organized and prevent tangling or physical damage.
After installation use a cable tester to confirm the performance and integrity of Cat6A Ethernet cables. This step is crucial for detecting and addressing any issues on.
Belden: Known for their dependable cables suitable for various purposes.
Panduit: Provides high performance Cat6A cables in shielded and unshielded options for different installation environments.
Leviton: Offers Cat6A cables designed for residential use, with performance and durability.
Monoprice: Provides cost effective yet reliable Cat6A Ethernet cables that offer good performance at an affordable price point.
Cable Matters provides a range of Ethernet cables, including options, like plenum rated and shielded versions, to cater to needs.
When troubleshooting problems with Cat6A Ethernet cables issues may arise with correct installation. Here are some typical problems and how to address them:
1. Slow Network Speeds: If you encounter speeds than expected check for connections overly long cables or damaged wires. Make sure your network devices can handle the speeds you're aiming for.
2. Interference: If you suspect interference (EMI) affecting your network consider upgrading to shielded Cat6A Ethernet cables or enhancing the grounding of existing ones.
3. Connectivity Problems: If devices aren't connecting properly confirm the connectors integrity and ensure they are crimped correctly. Use a cable tester to verify continuity.
4. Crosstalk: If you observe data corruption or sporadic connectivity issues crosstalk may be the culprit. Ensure that cable pairs are tightly twisted and opt for cables in high density environments.
Selecting the Cat6A Ethernet cable for your use case is essential, in maintaining peak network performance and reliability. To make a informed choice that suits your requirements it's crucial to grasp the characteristics, varieties and factors to consider when it comes to Cat6A cables.
Whether you're establishing a high speed network in a data center an office environment or a residential space Cat6A Ethernet cables provide the speed and readiness needed to accommodate both future networking needs.
It's essential to prioritize quality and correct installation methods to fully leverage the advantages of investing in Ethernet cables.
