All About USB Cable Port

Written by: Tektel Team

All About USB Cable Port



The USB Port, Universal Serial Bus or USB is an industry-standard cable connecting computers and devices.



It is designed to standardize the electric power supply USB cable for a vast variety of devices, the USB was developed in the mid-’90s. By now there are three basic formats of USB connectors:


The standard format. This format is designed for desktop or portable equipment such as USB flash drives,the mini format. A format intended for mobile equipment, the micro size. This thinner format is designed for low-profile mobile equipment including most modern mobile phones.



Data Transfer Modes


There are 5 modes of USB data transfer. In order of increasing bandwidth, they include:
Low Speed – USB 1.0 (1996)
Full Speed– USB 1.1 (1998)
High Speed – USB 2.0 (2000)
SuperSpeed – USB 3.0 (2008)
SuperSpeed+ – USB 3.1 (2013)
The various modes have differing hardware and cabling requirements.



USB Port Construction



Different than some other data buses such as Ethernet or HDMI, USB connections are directed, with both upstream and downstream ports emanating from a single host. This applies to electrical power, with only downstream-facing ports providing power. This topology was selected for the prevention of electrical overloads and damaged equipment.

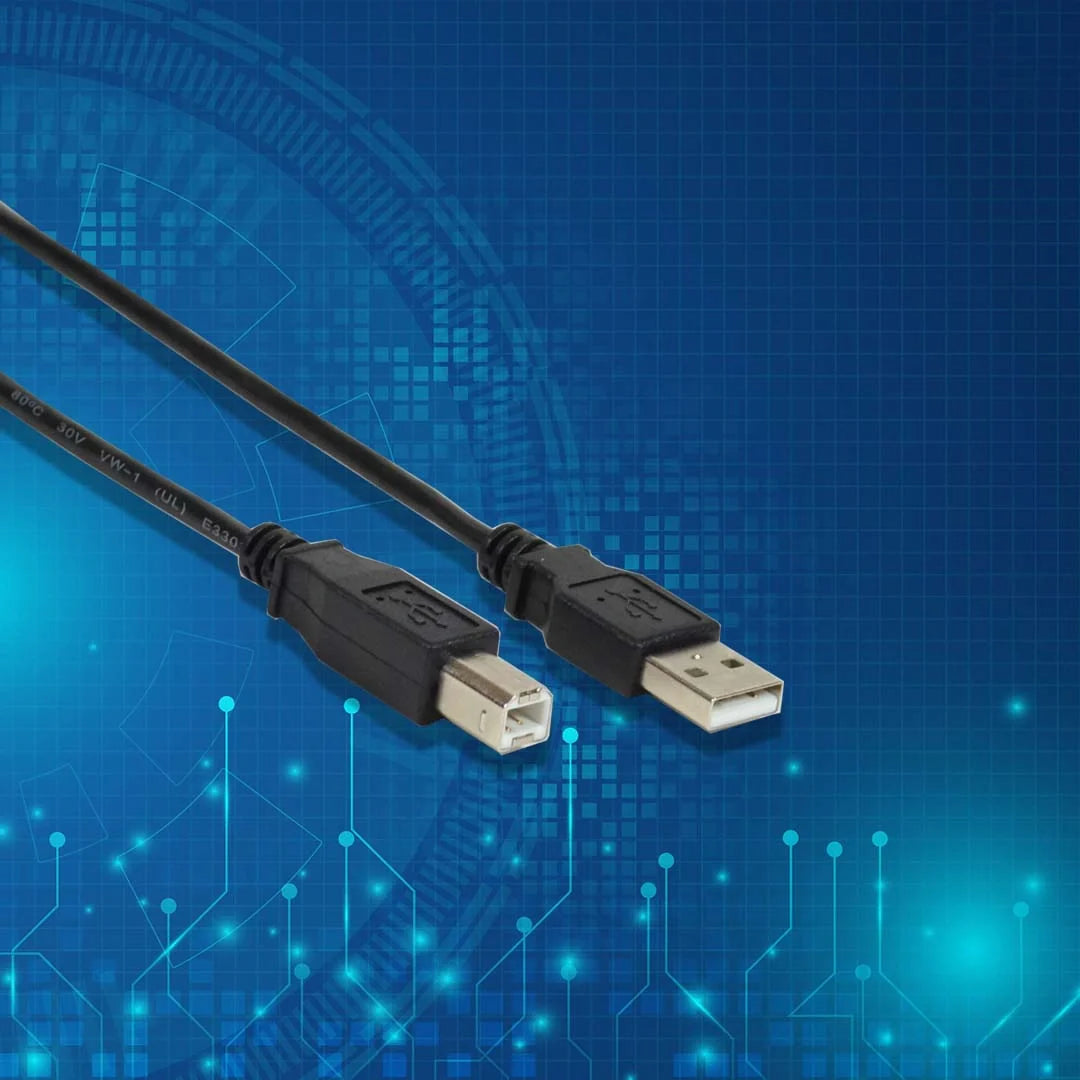

USB cables have different ends: A and B, with different physical connectors for each. Generally, each different format requires four different connectors: a plug and receptacle for each of the A and B end, USB cables have plugs, with corresponding receptacles on the computers or electronic devices.



The A end is typically the standard format, and the B side varies between standard, mini, and micro. The mini and micro formats also provide for USB On-The-Go with a hermaphroditic AB receptacle, which accepts either an A or a B plug. On-The-Go allows USB between peers without discarding the directed topology by choosing the host when connecting the device.



Cable Length

USB cables are available in various lengths up to 16 feet. That is because longer spans are not reliable. They can cause data transfer timing issues and may lead to data loss. However, using a hub for longer spans may help resolve the situation. Connect two USB cables with a hub for a distance longer than 16 feet between devices.



Types of USB Cable Ports

USB cable ports have evolved over the years, with each iteration introducing new features and capabilities. The most common types of USB cable ports include:

USB-A: This is the classic rectangular-shaped USB port that most people are familiar with. It is often used for connecting peripherals like keyboards, mice, external hard drives, and flash drives.



USB-B: This port comes in various shapes, including the square-like USB-B and the smaller micro-USB and mini-USB variants. USB-B ports are commonly found on printers, scanners, and some older smartphones.



USB-C: USB-C is the latest and most versatile USB cable port. It features a reversible design, allowing for easy insertion, and supports high-speed data transfer, video output, and power delivery. USB-C ports are now found on many modern laptops, smartphones, tablets, and other devices.



Thunderbolt: Developed by Intel in collaboration with Apple, Thunderbolt ports offer incredibly fast data transfer speeds and support for various protocols, including USB and DisplayPort. Thunderbolt 3 and Thunderbolt 4 use USB-C connectors, adding to their compatibility and versatility.

Functionality of USB Cable Ports

USB cable ports serve a multitude of functions, making them an indispensable part of our daily tech interactions. Some key functionalities of USB cable ports include:

Data Transfer: USB cable ports facilitate the transfer of data between devices, enabling the quick and efficient exchange of files, documents, photos, and videos.



Charging: USB cable ports are widely used for charging devices such as smartphones, tablets, and wearable gadgets. USB-C ports, in particular, support fast charging and power delivery, reducing the time it takes to recharge devices.



Peripheral Connection: USB cable ports allow us to connect a wide range of peripherals to our devices, enhancing their functionality. Keyboards, mice, printers, external hard drives, and game controllers are just a few examples of peripherals that connect through USB cable ports.



Audio and Video Transmission: USB cable ports have expanded their capabilities to transmit audio and video signals. USB-C ports, for instance, can be used to connect monitors, projectors, and even external GPUs, providing a seamless multimedia experience.



Power Delivery: USB-C ports support power delivery, enabling devices to not only receive power but also deliver power to other devices. This functionality has paved the way for innovative products like USB-C hubs and docking stations.

Future Prospects and Innovations

The evolution of USB cable ports is far from over. As technology continues to advance, we can expect further innovations in USB technology. Some potential future prospects include:

Higher Data Transfer Speeds: Future USB cable ports may introduce even higher data transfer speeds, enabling near-instantaneous file transfers and enhancing the efficiency of data-intensive tasks.



Enhanced Power Delivery: USB cable ports could offer even more advanced power delivery capabilities, allowing for faster charging and supporting a wider range of devices.



Integration with Emerging Technologies: USB cable ports could play a crucial role in the integration of emerging technologies, such as augmented reality (AR) and virtual reality (VR) devices, by providing high-speed data transfer and power delivery.



Improved Compatibility: Future USB cable ports might focus on enhancing cross-device compatibility, making it easier to connect and use peripherals across different platforms.



Eco-Friendly Design: USB cable ports could be designed with sustainability in mind, incorporating materials and features that reduce electronic waste and promote a greener tech ecosystem.

A Fundamental component

In the ever-evolving landscape of technology, USB cable ports remain a fundamental component that connects our devices, empowers our gadgets, and simplifies our digital interactions. From the classic USB-A to the versatile USB-C and Thunderbolt ports, these connectors have transformed the way we interact with our devices. As we look ahead to the future, USB cable ports are poised to continue their journey of innovation, driving connectivity and convenience to new heights. Whether it's for data transfer, charging, or peripheral connection, USB cable ports will undoubtedly remain at the heart of our tech-driven lives.
